Suggestion: Make sure the device is powered off and unplugged before beginning disassembly. 🛑
Unscrew the 10 Philips screws securing the bottom panel to the chassis. 🔩
Use a thin plastic tool to pry up the back of the panel and release the top edges. 🛠️
Continue prying along the sides and front to release all internal clips. 🔓
More information: 🔍 The bottom panel provides quick and easy access to the RAM, battery, storage, and cooling system ❄️, so you can keep your device in optimal condition. ⚙️
Battery Removal 🔋
Caution: Handle the battery carefully and avoid contact with the connectors using metal tools ⚠️.
Disconnect the battery connector by gently pulling it toward the battery. 🔌
Unscrew the two Philips screws holding the 53Wh battery in place. 🛠️
Lift and remove the battery from the chassis. 🔧
More information: The 53Wh battery offers up to 9.5 hours of video playback 🎥, being a solid option for work and travel ✈️.
Memory upgrade 💾
Note: The RAM slots are protected by a metal cover 🔒.
Use a pry tool to carefully remove the metal shield covering the RAM area 🛠️.
The device includes two SODIMM slots for dual-channel memory upgrades ⚡.
Install up to 32GB of DDR5-5600MHz RAM according to Acer's official specifications, although up to 96GB can be supported depending on the CPU 🚀.
More information: Dual-channel memory improves system speed and responsiveness, optimizing multitasking performance so you can work and play without interruption.
Storage Upgrade 💾✨
Advice: Be careful when removing or installing SSDs to protect the connector and ensure a secure connection. 🔧
Find the only M.2 slot compatible with 2280 NVMe Gen 4 SSDs. 📌
Install the SSD at a slightly tilted angle and secure it with the screw if available. 🔩
More information: Although it only has one slot, Gen 4 compatibility delivers ultra-fast storage performance. 🚀💨
Connectivity options 🌐✨
Learn more: The Wi-Fi 6 card, located to the right of the cooling system, is easily replaceable by the user, providing great flexibility to improve your connection. 🚀📶
Cooling System Overview ❄️
More information: The cooling solution is simple yet effective for everyday workloads.
A fan 🌀 provides a constant airflow for the internal components.
A single, long heat pipe 🛠️ channels heat away from the CPU.
A top-mounted heat sink and disperser complete the thermal system, ensuring everything works in balance.
Tip 💡: Clean the fan and heat sink regularly to prevent dust buildup 🧹 and maintain optimal performance.

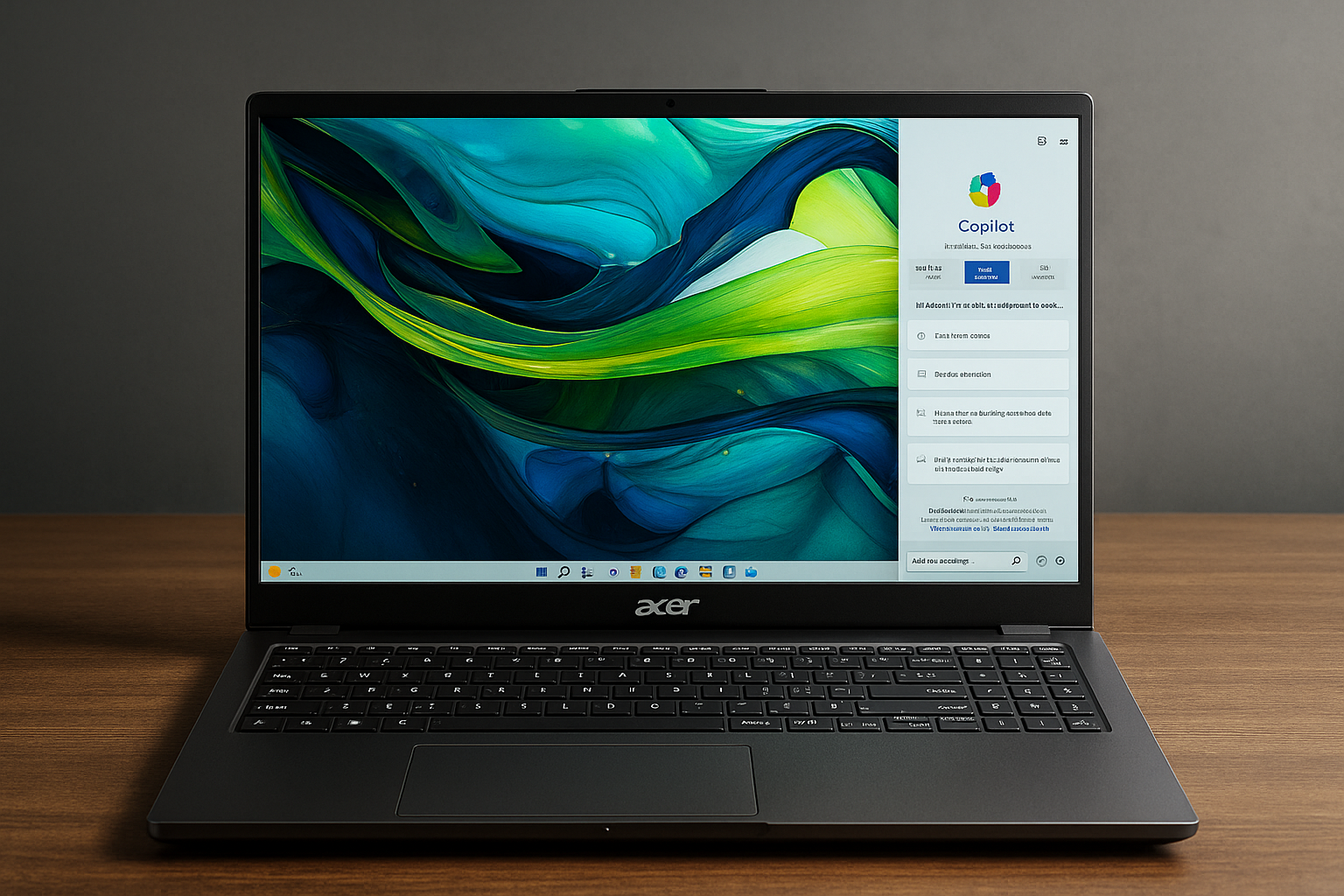

Detailed review of the Acer Aspire Go (AG15-51P) 💻✨
The laptop market is full of budget options with acceptable hardware. Acer Aspire Go (AG15-51P) It falls right into this category. It's powered by 15W Alder Lake processors, which deliver fast and efficient performance for everyday use and normal tasks.
However, the lack of a dedicated NPU unit for AI tasks could be a point against those looking for extra power in AI 🤖. Still, the port selection is quite complete, with four USB connectors, which is a big plus for its price range 💼.
It also highlights the possibility of improve the hardware, something that always adds points for users looking to extend the lifespan of their equipment 🔧. As for the display options, we're glad to see that there are no TN units, as this improves the visual experience. The only panel available for this Acer series is a 15.3″ 📺.
In summary, he Acer Aspire Go (AG15-51P) It is an efficient and affordable laptop, equipped with Intel Core i7-1255U processor, 16GB of DDR5 RAM and 512GB SSD, in addition to graphics Intel Iris Xe Graphics G7. 🚀
Its design facilitates quick access to key components such as RAM, battery and storage, allowing simple and quick updates. 🔧⚡
He Acer Aspire Go is a solid choice for users looking for balanced performance and expansion possibilities in an affordable laptop, ideal for job, study and daily entertainment. 🎓🎮📈
The Review
Acer Aspire Go AG15-51P
4Punctuation
“Middle of the road” is a decent way to characterize the Acer Aspire Go 15. 💻 Is it as nice as a 750 or 800 laptop? No. ❌ Is it better than a 400 or 450 model? Considerably ✅—aside from the small solid-state drive, the Acer avoids the pitfalls of most budget notebooks. A more responsive backlit keyboard would be nice ✨, but the Aspire Go is a decent deal at its list price and even better when it’s on sale 🔥, making it a worthy successor to Acer’s beloved budget model, the Aspire 3. 🚀
ADVANTAGES
Long battery life 🔋 thanks to the modest 53Wh battery (~9.5 hours of video)
Fair price 💸
Solid foundation 🏗️
Lightweight for a 15" model (1.70 kg) 🪶
Without PWM (BOE0CEA) ❌⚡
Wide viewing angles (BOE0CEA) 👀
Wi-Fi 6 + Bluetooth 5.1 📶🔵
Good comfort during full system loads 😌
The Core i5-1334U maintains ~2.88 GHz / 2.03 GHz even under prolonged stress 🔥💻
2x DDR5 SODIMMs ⚡
4x USB + HDMI 2.1 ports 🔌
Upgradeable Wi-Fi card 🔧
The bottom plate can be opened quite easily 🛠️
Surprisingly good touchpad for its price range 👆👍
Good sound quality 🔊
CONS
Plastic construction 🧱
Low sRGB coverage and maximum brightness (BOE0CEA) 🌈🔅
Only one M.2 slot 🛑
Slightly soft cover 🛡️⚠️
No backlight or fingerprint reader, not even as an option 🌙🔒
