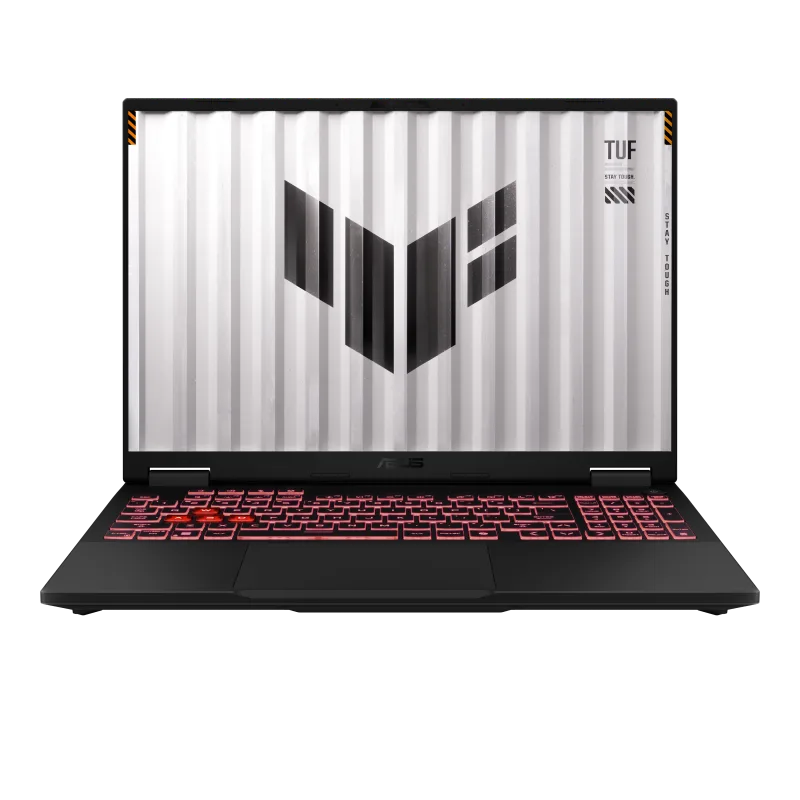

How to open the ASUS TUF Gaming A16 FA608🔧 Disassemble and upgrade quickly! ⚡

Opening the ASUS TUF Gaming A16 FA608

Suggestion: Make sure your laptop is turned off and unplugged before you begin. ⚙️

1. Unscrew the 11 Phillips-head screws securing the bottom panel to the chassis. Note that the screw on the bottom right edge is captive and will lift the panel in this area, simplifying disassembly.
2. Use a thin plastic tool to pry the front, sides, and back of the panel to release the internal clips.
3. Carefully remove the bottom panel to access the interior.

More info: The bottom panel includes dust filters in front of the two vents and numerous plastic elements that improve structural support.

Battery Removal

Caution: Wear gloves to avoid short circuits when handling the battery. ⚠️

1. Slide up the small metal cap on top of the battery connector to release it.
2. Carefully pry the connector up from the sides using plastic tools to disconnect it from the motherboard.
3. Unscrew the four Phillips-head screws securing the 90Wh battery to the chassis.
4. Lift and remove the battery from the laptop.

More info: The 90Wh battery provides approximately 8 hours of video playback, making it suitable for gaming and productivity tasks.

Memory Details

Note: The memory is soldered and is not user upgradeable.

More info: The laptop supports up to 32GB of LPDDR5x-7500MHz RAM in dual-channel mode, providing enough power for gaming and multitasking.

Storage Upgrade

Suggestion: Handle SSD components carefully to avoid damage or data loss. 💾

1. Locate the two M.2 slots, both of which support 2280-sized Gen 4 SSDs.
2. The right slot supports PCIe 4.0 x4, while the left slot supports PCIe 4.0 x2. Choose the correct slot for faster performance.
3. If you use the left slot, be aware that an installed NVMe drive will almost completely cover the Wi-Fi 6E card, which could cause wireless connection issues.
4. The system's NVMe drive is covered with a heat shield and protective plastic film. Carefully remove these before upgrading.

More info: The heat shield helps manage the thermal performance of SSDs.

Connectivity Options

More info: The Wi-Fi 6E card is located across from the left SSD slot. If you install an NVMe card there, it will almost completely cover the wireless card, which could cause connection issues.

Cooling System Overview

More info: He ASUS TUF Gaming The A16 features a robust cooling system designed for high gaming performance. ❄️

1. The system includes two Arc Flow fans for efficient airflow.
2. Five heat pipes are shared between the CPU and GPU, ensuring balanced cooling.
3. Three large heat sinks and multiple heat spreaders improve thermal dissipation.

Suggestion: Clean the fans and heat pipes regularly to maintain optimal cooling performance, especially during intense gaming sessions. ✔️

ASUS TUF Gaming A16 FA608 Review

• AMD Ryzen AI 9 HX 370 Processor
• NVIDIA GeForce RTX 4060 Graphics Card (Laptop, 140W)
• RAM 16GB
• 1000GB SSD storage

He TUF Gaming A16 FA608 It's a compact 16-inch machine with almost no compromises in terms of power and features. The only notable drawback is the soldered memory. The other specs are quite good, matching the port selection packed with different connectors, the storage upgradeability, and the powerful hardware.

This reminds us that all devices in this ASUS series come with the Zen 5 AMD Ryzen AI 9 HX 370, which has an impressive 50-TOP NPU for AI productivity. The device may not be large, but the GPU's power limits are impressive, made possible by the considerable five-fan cooling solution... 🚀

Pros

• 2x M.2 slots
• Great overall performance
• Zen 5 CPU
• High speeds and power limits during intense stress (4.45 GHz / 3.30 GHz P & E-core clock + 80W)
• Great “performance mode” offering 4.05 GHz / 3.15 GHz P and E-core clock and 95W GPU TGP + low noise levels
• The RTX 4070 can maintain ~130W during gaming
• MUX + NVIDIA Advanced Optimus + G-SYNC switch
• Four USBs + Wi-Fi 6E and Bluetooth 5.3
• Without PWM (BOE0C80)
• Fast display (8.9 ms) + 165Hz refresh rate (BOE0C80)
• 99% sRGB coverage + color accuracy thanks to our "Design & Office Work" profile (BOE0C80)
• Maximum brightness of 402 nits (BOE0C80)
• The Armoury Crate app offers tons of customization options
• Comfortable backlit keyboard + precise touchpad
• Long battery life (~8 hours of videos)
• The fans do not spin during light loads in "quiet mode"
• Good build quality
• Well-cooled SSD (Micron 2400E)

Cons

• Soldered RAM
• High price
• QLC NVMe
• The second SSD slot is limited to PCIe Gen 4×2 speed
• The Wi-Fi card is positioned in front of the left SSD slot, which could cause connection issues.

In conclusion, open and disassemble the ASUS TUF Gaming A16 FA608 It is an accessible process that allows for improvements, especially in storage, thanks to its two M.2 slots compatible with SSD Gen 4 🚀.

Although the RAM is soldered and cannot be upgraded, the device makes up for this with a powerful processor. AMD Ryzen 9 HX latest generation, a graphics card NVIDIA GeForce RTX 4060 🎮 and an efficient cooling system ❄️,

along with features designed to maximize performance in both gaming and productivity.

It is essential to take caution when handling sensitive components such as the battery 🔋 and the heat shield on SSDs, in addition to considering the possible interference that could be generated by installing an NVMe in the left slot on the card. Wi-Fi 6E 📶.

In short, the ASUS TUF Gaming A16 FA608 It presents itself as a solid option for users looking for power and versatility in a compact laptop 💻, with clear options for storage upgrades and a design designed to maintain optimal performance during long usage sessions ⏳.
